POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator

POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Jaminan: disesuaikan
Jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke
Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis keluaran: AC Tunggal/Tiga Fasa
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank Indursty dll
Nilai Tegangan: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga
Nama Produk: Genset Diesel, Genset 188kva, Didukung Oleh Genset Diesel FAWDE, Siaga Menggunakan Generator Tenaga
Warna: Kebutuhan Pelanggan
Frekuensi: 50/60Hz
Nilai Daya: 188kva
Mesin: Fawde Asli
metode pendinginan: Sistem Pendingin Air
Menyoroti:

150kW diesel generator set

,

FAWDE 188kva power generator

,

durable diesel generator with warranty

Informasi dasar
Tempat asal: Cina
Nama merek: FAWDE
Sertifikasi: CE
Nomor model: CA6DL1 - 24D
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: kayu lapis
Waktu pengiriman: 30 hari
Menyediakan kemampuan: 500pcs per bulan
Deskripsi Produk

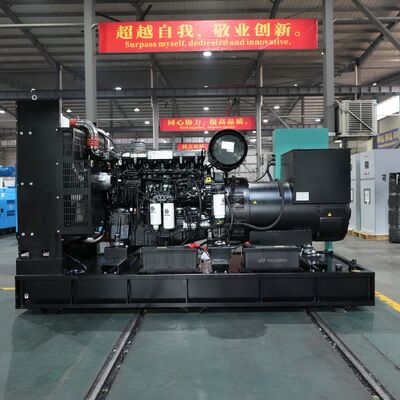

150kW 188KVA BOBIG FAWDE Diesel Generator (Model: CA6DL1-24D)

Our 150kW 188KVA BOBIG FAWDE diesel generator (Model: CA6DL1-24D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance: Rated power of 150kW (188KVA) with stable and efficient prime power output. Operates at standard 50Hz frequency suitable for most electrical equipment.
Engine Excellence: Powered by CA6DL1-24D FAWDE engine with high torque, fuel efficiency, and low emissions. Runs at 1500 RPM for smooth, consistent power supply.
Environmental Adaptability: Operates effectively in ambient temperatures from +5°C to +40°C and at altitudes up to 1000m.
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 188 206
Power Rating (kW) 150 165
Frequency (Hz) 50
Engine Model CA6DL1-24D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Engine Model & Manufacturer CA6DL1-24D (FAWDE)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged & Intercooled
Cooling System Water-cooled
Bore 110 mm
Stroke 135 mm
Compression Ratio 17.5:1
Displacement 7.7 L
Dry Engine Weight 780 kg
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274G
Alternator Rated Power 150kw/188kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Protection Grade IP23
Insulation Class H class
Dimension and Weight Open Type (BFA206) Silent Type (BFA206S)
Length (mm) 2550 3250
Width (mm) 1100 1120
Height (mm) 1760 1540
Tank Capacity (L) 345 345
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repair services.

Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.

Company Information

We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we specialize in gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and related products. Our company holds ISO9000 Quality System Certification and maintains advanced testing equipment including CAD systems, automated assembly equipment, and digital testing systems.

POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 0 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 1 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 2 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 3 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 4 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 5 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 6 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 7 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 8 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 9 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 10 POWER 150kW Diesel Generators Set FAWDE Genset Available 188kva Power Generator FACTORY PRICE Durable diesel Generator 11
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Also accept L/C, Trade Assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit.
Which port do you use for export?
Fuzhou port, Fujian province or as customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you offer parts if needed?
Yes, we can supply parts at any time (not limited to warranty period), usually shipped within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase and color?
Yes, all specifications can be customized according to customer requirements.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign distribution agreements.
