Rumah /Produk/Generator Diesel Cummins/Factory Sale 400kW 500KVA Cum min Diesel Generator Set 500kva for Sale With Super Silent Open Frame diesel Generator

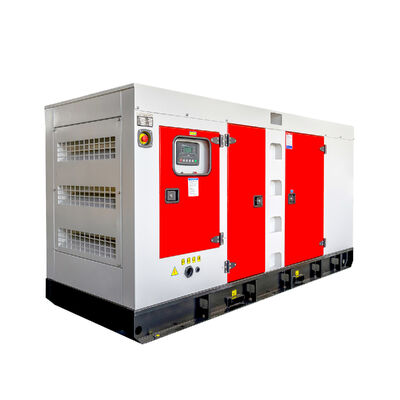

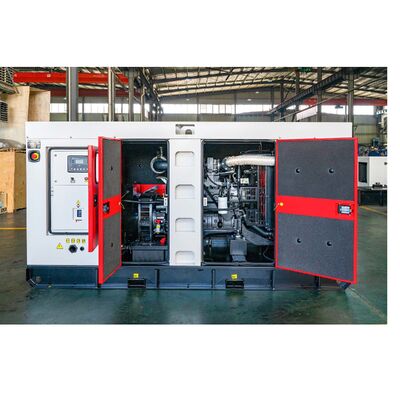

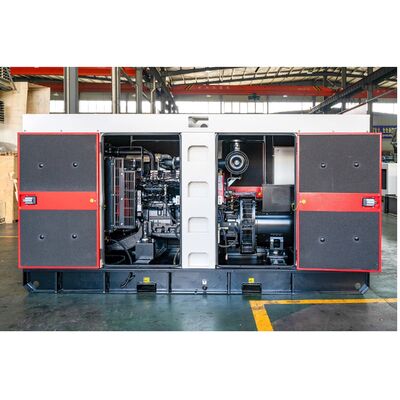

Factory Sale 400kW 500KVA Cum min Diesel Generator Set 500kva for Sale With Super Silent Open Frame diesel Generator

Factory Sale 400kW 500KVA Cum min Diesel Generator Set 500kva for Sale With Super Silent Open Frame diesel Generator
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kanopi: Disesuaikan
Jaminan: 12 Bulan/1000 Jam
jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke
Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis keluaran: AC Tunggal/Tiga Fasa
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank Indursty dll
Tegangan terukur: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga
Nama Produk: Genset Diesel, Genset 500KVA, Ditenagai Genset Diesel CUMMIN S, Siaga Gunakan Genset Tenaga Diesel 4
Warna: Kebutuhan Pelanggan
Frekuensi: 50/60HZ
Nilai Daya: 400kw
Mesin: CUMMIN S Asli
metode pendinginan: Sistem Pendingin Air
Menyoroti:

400kW Cummins diesel generator set

,

500kva super silent diesel generator

,

open frame Cummins diesel generator
Informasi dasar
Tempat asal: Cina
Nama merek: CUMMIN S
Sertifikasi: CE
Nomor model: kta19-g3a
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Bungkus gelembung
Waktu pengiriman: 30 hari
Menyediakan kemampuan: 500 buah per bulan
Deskripsi Produk
400kW 500KVA BOBIG CUMMINS Diesel Generator Set
Model: KTA19-G3A - Reliable Power Solution
Product Overview
Our 400kW 500KVA BOBIG CUMMINS diesel generator (Model: KTA19-G3A) is engineered to deliver reliable power for diverse applications. Backed by the renowned CUMMINS brand, it offers superior performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 400kW (500KVA) for industrial, commercial, and residential applications
  • Frequency: Standard 50Hz operation suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: KTA19-G3A CUMMINS engine with advanced technology
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 500 550
Power Rating (kW) 400 440
Frequency (Hz) 50
Engine Model KTA19-G3A
Engine Speed (RPM) 1500
Phase 3
PF 0.8

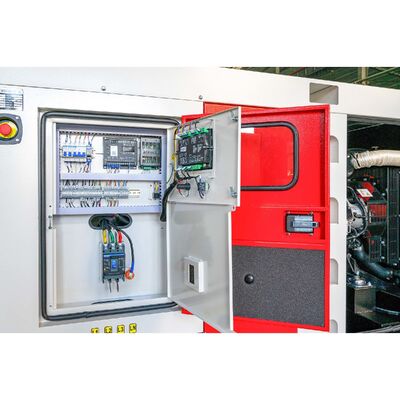

Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BC550 (Open Type) BC550S (Silent Type)
Length (L) mm 3350 4600
Width (W) mm 1300 1580
Height (H) mm 2050 2200
Tank Capacity (L) 920 920

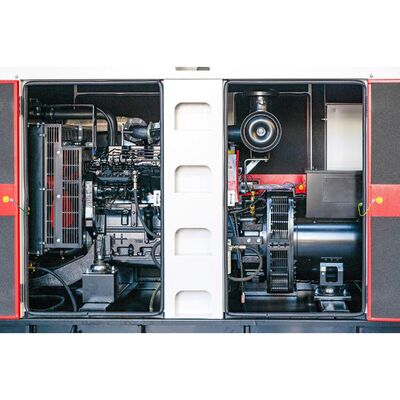

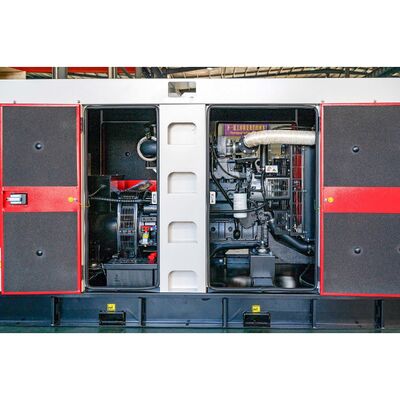

Engine Specifications
Engine Model & Manufacturer KTA19-G3A (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged, Aftercooled
Bore x Stroke 159 x 159 mm
Displacement 19 L
Compression Ratio 13.9:1
Prime Power/Speed 448 kW/1500 rpm
Standby Power/Speed 498 kW/1500 rpm
Fuel System Cummins PT
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 30.3 L
Coolant Capacity (Engine Only) 18.9 L
Fuel Consumption (100% Load) 203 g/kWh @1500 rpm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354D
Alternator Rated Power 400kw/500kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Environmental Adaptability
  • Ambient Temperature: Operational range of +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Certifications and Standards
Our generator complies with international and national standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.
BOBIG Generator Certification 1 BOBIG Generator Certification 2
Applications
This diesel generator is ideal for various applications:
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization and Services
  • We support customization and OEM services with design drawings
  • All units equipped with original power supplies and standard DSE 6120 controller
  • Engine, generator, and controller options available
  • One-year or 1000-hour warranty (whichever comes first)
  • Professional after-sales service team available 24/7
Packaging & Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit.
BOBIG Generator Packaging 1 BOBIG Generator Packaging 2
Why Choose BOBIG
  • Brand Reputation: Cummins is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured according to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
  • Technical Support: Professional team providing maintenance and repair services
