Rumah /Produk/Generator Diesel Cummins/360kW 450KVA Auto Start diesel Generator Set with ATS Open Super Silent Generator diesel Set Factory Professional Cum min

360kW 450KVA Auto Start diesel Generator Set with ATS Open Super Silent Generator diesel Set Factory Professional Cum min

360kW 450KVA Auto Start diesel Generator Set with ATS Open Super Silent Generator diesel Set Factory Professional Cum min
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kanopi: Disesuaikan
Jaminan: 12 Bulan/1000 Jam
jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke
Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis keluaran: AC Tunggal/Tiga Fasa
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank Indursty dll
Tegangan terukur: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga
Nama Produk: Genset Diesel, Genset 450KVA, Ditenagai Genset Diesel CUMMIN S, Siaga Gunakan Genset Tenaga Diesel 3
Warna: Kebutuhan Pelanggan
Frekuensi: 50/60HZ
Nilai Daya: 360kW
Mesin: CUMMIN S Asli
metode pendinginan: Sistem Pendingin Air
Menyoroti:

360kW diesel generator set with ATS

,

450KVA auto start diesel generator

,

super silent Cummins diesel generator
Informasi dasar
Tempat asal: Cina
Nama merek: CUMMIN S
Sertifikasi: CE
Nomor model: 6ZTAA13-G4
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Bungkus gelembung
Waktu pengiriman: 30 hari
Menyediakan kemampuan: 500 buah per bulan
Deskripsi Produk

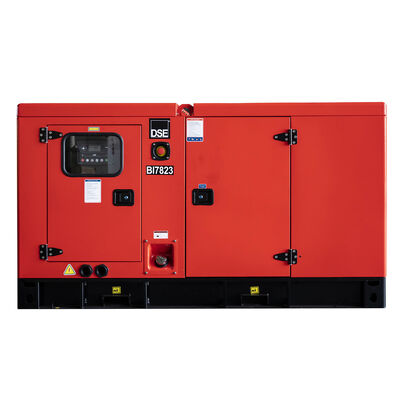

360kW 450KVA Auto Start Diesel Generator Set with ATS
Our 360kW 450KVA BOBIG CUMMIN S diesel generator (Model: 6ZTAA13-G4) provides reliable power for industrial, commercial, and residential applications. Built with the renowned CUMMIN S engine, this generator delivers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 360kW (450KVA) for various industrial applications
  • Prime power output ensures stable, efficient continuous operation
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: 6ZTAA13-G4 CUMMIN S engine
  • Advanced technology with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 450 495
Power Rating (kW) 360 396
Frequency (Hz) 50
Engine Model 6ZTAA13-G4
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BC495 (Open Type) BC495S (Silent Type)
Length (mm) 3350 4300
Width (mm) 1300 1600
Height (mm) 2460 2430
Tank Capacity (L) 828 828
Engine Specifications
Engine Model & Manufacturer 6ZTAA13-G4 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged & Charge Air Cooled
Bore x Stroke 130 x 163 mm
Displacement 13.0 L
Compression Ratio 17.0:1
Fuel System BYC PD/GAC
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 23.1 L
Coolant Capacity (Engine Only) 13 L
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354C
Alternator Rated Power 360kW/450kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Customization & OEM Services
We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C
  • Altitude: Suitable for use up to 1000m
  • Custom solutions available for different environmental conditions
Certifications & Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.
BOBIG Diesel Generator Control System
BOBIG Generator Certification
BOBIG Quality Certification
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free easy-damageable spare parts provided during warranty period. Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
