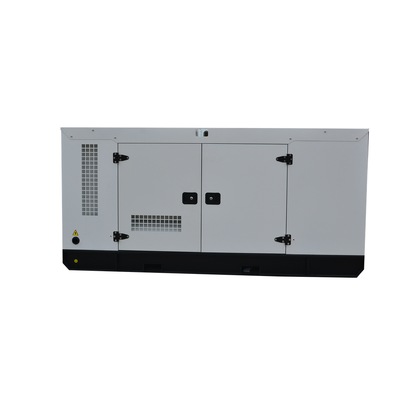

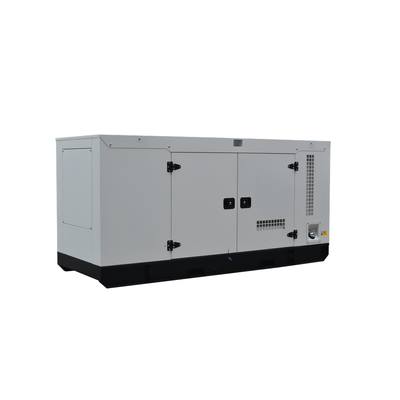

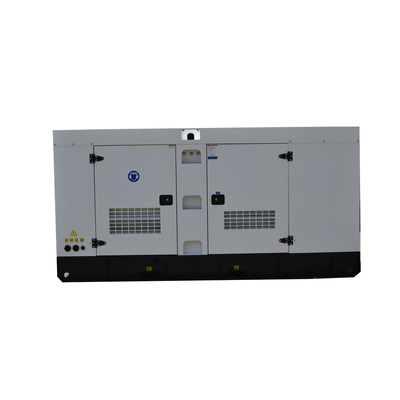

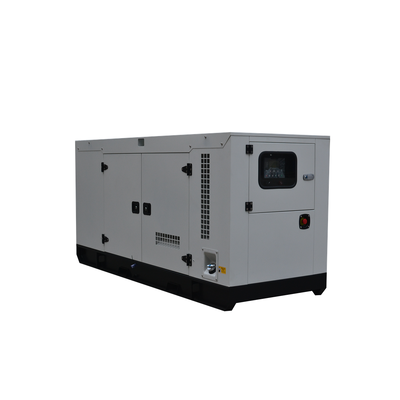

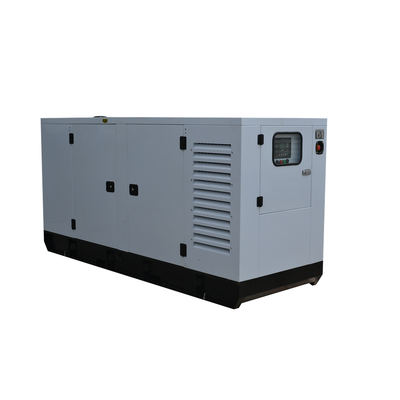

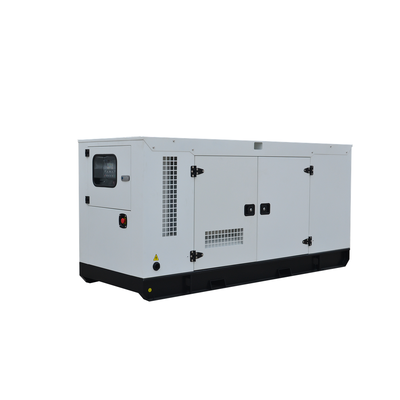

250kW 313KVA Power Generator 3 Phase Open/Silent Portable Diesel Generator for Home Small Power 3phase

250kW 313KVA Power Generator 3 Phase Open/Silent Portable Diesel Generator for Home Small Power 3phase
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kanopi: Disesuaikan
Jaminan: 12 Bulan/1000 Jam
jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke
Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis keluaran: AC Tunggal/Tiga Fasa
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank Indursty dll
Tegangan terukur: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga
Nama Produk: Genset Diesel, Genset 250kW, Ditenagai Genset Diesel CUMMIN S, Siaga Gunakan Genset Tenaga Diesel 31
Warna: Kebutuhan Pelanggan
Frekuensi: 50/60HZ
Nilai Daya: 250kw
Mesin: CUMMIN S Asli
metode pendinginan: Sistem Pendingin Air
Menyoroti:

250kW diesel generator 3 phase

,

313KVA portable power generator

,

Cummins silent diesel generator
Informasi dasar
Tempat asal: Cina
Nama merek: CUMMIN S
Sertifikasi: CE
Nomor model: NTA855-G1B
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Bungkus gelembung
Waktu pengiriman: 30 hari
Menyediakan kemampuan: 500 buah per bulan
Deskripsi Produk
250kW 313KVA Power Generator - 3 Phase Open/Silent Portable Diesel Generator
Product Overview

Our 250kW 313KVA BOBIG CUMMIN S diesel generator (Model: NTA855-G1B) delivers reliable power for industrial, commercial, and residential applications. Built with the renowned CUMMIN S engine, it offers high-quality performance and long-term durability.

Key Features
  • Power Performance: Rated at 250kW (313KVA) with stable prime power output
  • Frequency: Standard 50Hz operation suitable for most electrical equipment
  • Engine Excellence: NTA855-G1B CUMMIN S engine with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power with minimal wear
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)313344
Power Rating (kW)250275
Frequency (Hz)50
Engine ModelNTA855-G1B
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity≥ 8h @ 75% load
Dimensions & Weight
ModelBC344 (Open)BC344S (Silent)
Length (mm)30504200
Width (mm)11401500
Height (mm)18802100
Tank Capacity (L)575575
Engine Specifications
Engine Model & ManufacturerNTA855-G1B (Cummins)
Number of Cylinders6
Cylinder ArrangementIn-line
CycleFour Stroke
AspirationTurbocharged & Aftercooled
Bore x Stroke140 x 152 mm
Displacement14 L
Compression Ratio14.0:1
Prime Power/Speed284 kW/1500 rpm
Standby Power/Speed316 kW/1500 rpm
Fuel SystemPT
Cooling SystemForce Water Cooling Cycle
Alternator Details
Alternator BrandBOBIG
ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-314DS
Rated Power250kW/313kVA
Rated Voltage230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Protection GradeIP23
Insulation ClassH class
Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for other conditions)
Certifications & Standards

Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.

Product Certification 1 Product Certification 2
Applications
  • Industrial Use: Backup power for factories during outages
  • Commercial Buildings: Power for offices, malls, hotels - lighting, elevators, security systems
  • Residential Areas: Reliable power for communities with unstable grids
Customization & Services
  • Customization and OEM services available with design drawings
  • Standard DSE 6120 controller included (engine, generator, and controller options available)
  • One-year or 1000-hour warranty (whichever comes first)
  • 24/7 technical support, maintenance, and repair services
Generator Controller System
Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving deposit.

Generator Packaging Example 1 Generator Packaging Example 2
Why Choose BOBIG
  • Renowned Cummins engine brand with proven reliability
  • Strict quality control and international standard compliance
  • Customized solutions for specific requirements
  • Comprehensive after-sales support
