Name: Custom 100kw 200kva 200KW 300 Kva 400kw SDEC Silent diesel Generator 300kw 400kva 500kva Genset Electric Power Generator
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: SC13E500D2
Price: 1,600.00 USD
Availability: InStock

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Menyoroti:

100kw silent diesel generator

200kva electric power generator

400kw sdec genset with warranty

Informasi dasar

Tempat asal: Cina

Nama merek: SDEC

Sertifikasi: ISO 9001

Nomor model: SC13E500D2

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: 420*130*195cm

Waktu pengiriman: 30 hari kerja

Menyediakan kemampuan: 500 buah per bulan

Galeri

Custom 100kw 200kva 200KW 300 Kva 400kw SDEC Silent diesel Generator 300kw 400kva 500kva Genset Electric Power Generator

Deskripsi Produk

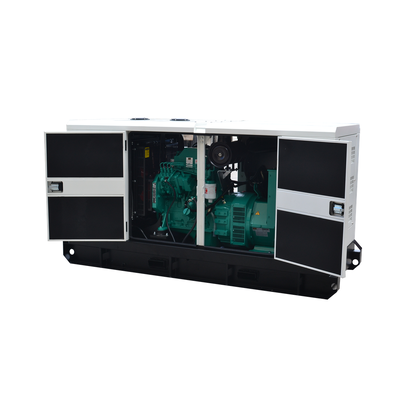

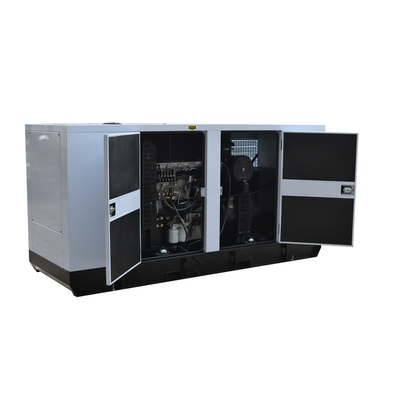

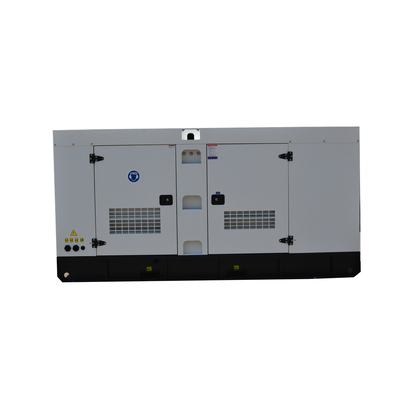

SDEC SC13E500D2 Diesel Generator Set

Our SDEC SC13E500D2 Diesel Generator is a high-performance, heavy-duty generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 300kW unit is encased in a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

General Specifications

Parameter	Prime Power	Standby Power
Rated Power (kVA)	375	413
Power Rating (kW)	300	330
Frequency (Hz)	50
Engine Model	SC13E500D2
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97; includes 10% overload capability for 1 hour within 12 hours of operation.

ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.

Dimensions & Weight

Model	BSD413 (Open Type)	BSD413S (Silent Type)
Length (L) mm	3100	4200
Width (W) mm	1160	1300
Height (H) mm	2150	1950
Tank Capacity (L)	690	690

Engine Specifications

Parameter	Specification
Engine Model & Manufacturer	SC13E500D2 (SDEC)
Engine Type	In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type	Direct injection
Cylinder Type	Wet cylinder liner
Number of Cylinders	6
Bore × Stroke	130 × 161 mm
Displacement	12.8 lit.
Compression Ratio	17 : 1
Firing Order	1-5-3-6-2-4
Fuel Injection Advance Angle	14°BTDC
Dry Weight	1164 kg
Dimension	1856×1000×1354mm
Rotation	CCW viewed from flywheel
Fly Wheel Housing	SAE 1#
Fly Wheel	SAE 14# (133 teeth)
Injection Pump	Longkou in-line "P" type
Governor	Electric type
Feed Pump	Mechanical type
Injection Nozzle	Multi hole type

Alternator Specifications

Parameter	Specification
Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-314F
Alternator Rated Power	300kW/375kVA
Rated Voltage (V)	230V/400V
Rated Frequency	50Hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Control Panel - DSE 6120

Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.

Key Benefits

Automatically transfers between mains (utility) and generator (DSE6120 MKIII only)
Hours counter for accurate monitoring and maintenance periods
User-friendly set-up and button layout for ease of use
Multiple parameters monitored & displayed simultaneously
Configurable for wide range of applications
PLC editor allows user configurable functions

Key Features

4-line back-lit LCD text display with multiple languages
Five-key menu navigation with LCD alarm indication
Customizable power-up text and screen images
DSENet® expansion compatibility and data logging
Internal PLC editor and protections disable feature
Fully configurable via PC using USB communications
3-phase generator and mains sensing and protection
Automatic load transfer control (DSE6120 MKIII only)
Generator current and power monitoring (kW, kvar, kVA, pf)
Mains current and power monitoring (DSE6120 MKIII only)
kW overload alarm and over current protection
Breaker control via fascia buttons
6 configurable DC outputs and 4 configurable analogue/digital inputs
Support for 0V to 10V & 4mA to 20mA sensors
8 configurable digital inputs
CAN, MPU and alternator frequency speed sensing
Real time clock and engine run-time scheduler
Engine pre-heat and post-heat functions
Engine idle control for starting & stopping
Fuel level alarms and 3 configurable maintenance alarms
Compatible with wide range of CAN engines including Tier 4
IP65 rating (with optional gasket)

Available Options

Engine	Alternator	Fuel System	Generating Set
Water Jacket Preheater Oil Preheater Oil manual pump	PMG excitation Space heater Winding temperature measuring	12/24 hour base tank Bunded fuel tank External fuel tank Automatic fuel feeding Switch between external tank and base tank (three-way valve)	Deepsea, ComAp, Smartgen etc. controller Trailer Tools with the machine
