Good Quality diesel Generator Set Super Silent C Ummin S Engine 150kW 188KVA Water Cooled Soundproof 3 Phase Factory

Good Quality diesel Generator Set Super Silent C Ummin S Engine 150kW 188KVA Water Cooled Soundproof 3 Phase Factory
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kanopi: Disesuaikan
Jaminan: 12 Bulan/1000 Jam
jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke
Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis keluaran: AC Tunggal/Tiga Fasa
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank Indursty dll
Tegangan terukur: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga
Nama Produk: Genset Diesel, Genset 150kW, Ditenagai Genset Diesel CUMMIN S, Siaga Gunakan Genset Diesel Tenaga 18
Warna: Kebutuhan Pelanggan
Frekuensi: 50/60HZ
Nilai Daya: 150kw
Mesin: CUMMIN S Asli
metode pendinginan: Sistem Pendingin Air
Menyoroti:

Cummins diesel generator set

,

Super silent 150kW generator

,

Water-cooled soundproof diesel generator
Informasi dasar
Tempat asal: Cina
Nama merek: CUMMIN S
Sertifikasi: CE
Nomor model: 6CTA8.3-G1
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Bungkus gelembung
Waktu pengiriman: 30 hari
Menyediakan kemampuan: 500 buah per bulan
Deskripsi Produk

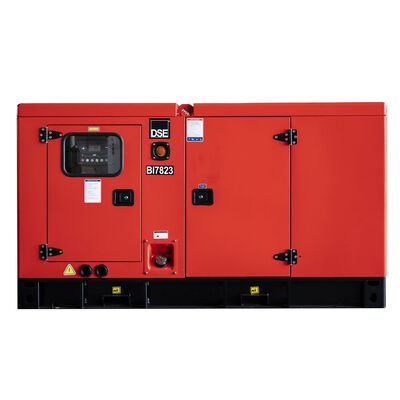

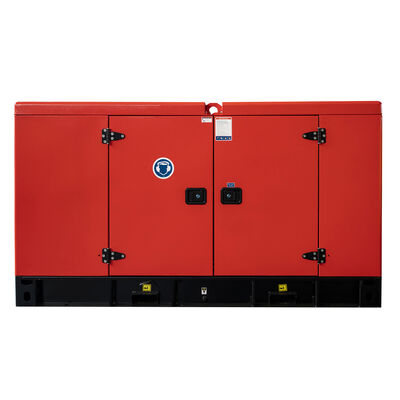

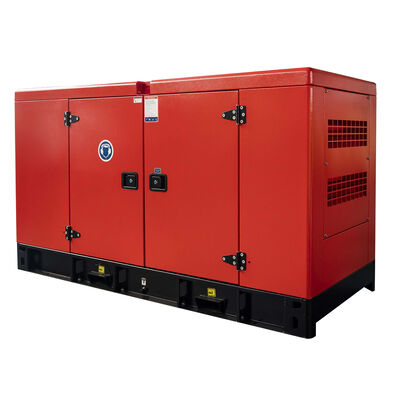

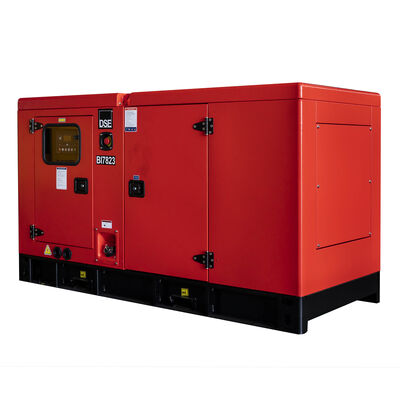

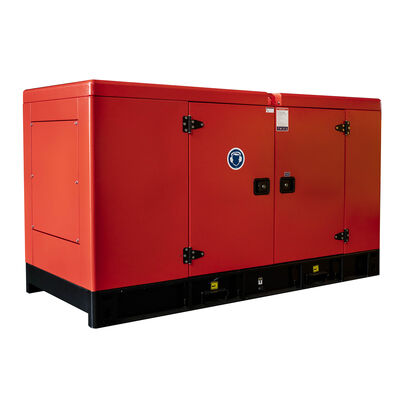

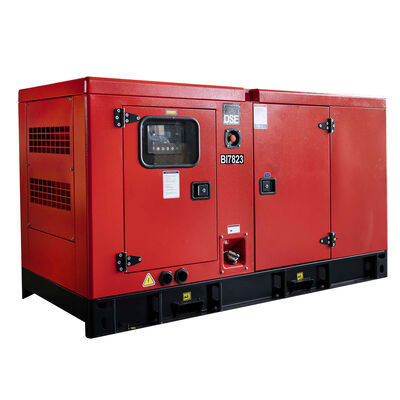

150kW 188KVA BOBIG CUMMIN S Diesel Generator Set
Our 150kW 188KVA BOBIG CUMMIN S diesel generator (Model: 6CTA8.3-G1) provides reliable power for industrial, commercial, and residential applications. Built with the renowned CUMMIN S engine, this super silent, water-cooled, soundproof generator delivers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 150kW (188KVA) prime power, 165kW (206KVA) standby power
  • Frequency: 50Hz standard operation
  • Phase: 3-phase system
  • Power Factor: 0.8
  • Rated Voltage: 400/230V (customizable)
Engine Excellence
  • Engine Model: 6CTA8.3-G1 CUMMIN S
  • Engine Speed: 1500 RPM
  • 6-cylinder in-line configuration
  • Turbocharged & aftercooled aspiration
  • Force water cooling cycle
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 188 206
Power Rating (kW) 150 165
Frequency (Hz) 50
Fuel Consumption 215 g/kWh @ 1500 rpm (100% load)
Operating Time ≥ 8 hours @ 75% load
Dimensions & Weight
Model Type Length (mm) Width (mm) Height (mm) Tank Capacity (L)
BC206 (Open Type) 2500 900 1760 345
BC206S (Silent Type) 3150 1120 1560 345
Alternator Specifications
Alternator Brand BOBIG
Alternator Model BW-274G
Rated Power 150kW/188kVA
Protection Grade IP23
Insulation Class H class
Voltage Regulation ≤±1% (Steady State)
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C
  • Altitude: Up to 1000m
  • Custom solutions available for different environmental conditions
Control System & Features
  • Digital control system
  • Standard DSE 6120 controller
  • Brushless, self-exciting alternator with AVR
  • 100% copper construction
  • Super silent soundproof design
Customization & OEM Services
We support complete customization and OEM services with design drawings. All components are optional including engine, generator, and controller configurations.
Applications
  • Industrial Use: Backup power for factories and manufacturing facilities
  • Commercial Buildings: Office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Quality Certifications
Good Quality diesel Generator Set Super Silent C Ummin S Engine 150kW 188KVA Water Cooled Soundproof 3 Phase Factory 0 Good Quality diesel Generator Set Super Silent C Ummin S Engine 150kW 188KVA Water Cooled Soundproof 3 Phase Factory 1
Our generators comply with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, ensuring quality, safety, and reliability.
Warranty & Service
  • 1-year or 1000-hour warranty (whichever comes first)
  • Free replacement of easy-damageable spare parts during warranty
  • 24/7 technical support and after-sales service
  • Cost-effective spare parts maintenance after warranty expiration
Why Choose BOBIG
  • Brand Reputation: Partnership with renowned CUMMIN S engine technology
  • Quality Assurance: Rigorous inspections and ISO9000 certification
  • Customization Options: Tailored solutions for specific requirements
  • Advanced Manufacturing: 10,000 sqm facility with modern equipment
Good Quality diesel Generator Set Super Silent C Ummin S Engine 150kW 188KVA Water Cooled Soundproof 3 Phase Factory 2
