Name: Open/Silent Portable Diesel Generator for Home Small Power Cummin s Genset 50kW 63KVA Generators Set Engine Electric
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: 4BTA3.9-G11
Price: 15,800.00 USD
Availability: InStock

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Kanopi: Disesuaikan

Jaminan: 12 Bulan/1000 Jam

Jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke

Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen

Jenis keluaran: AC Tunggal/Tiga Fasa

Pengendali: Deepsea/Smartgen/dll

Aplikasi: Bank Indursty dll

Nilai Tegangan: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V

alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga

Nama Produk: Genset Diesel, Genset 63KVA, Ditenagai Genset Diesel CUMMIN S, Siaga Gunakan Genset Tenaga Diesel 50

Warna: Kebutuhan Pelanggan

Frekuensi: 50/60Hz

Nilai Daya: 50KW

Mesin: CUMMIN S Asli

metode pendinginan: Sistem Pendingin Air

Menyoroti:

50kW Cummins diesel generator

silent portable generator for home

63KVA Cummins genset engine

Informasi dasar

Tempat asal: Cina

Nama merek: CUMMIN S

Sertifikasi: CE

Nomor model: 4BTA3.9-G11

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Bungkus gelembung

Waktu pengiriman: 30 hari

Menyediakan kemampuan: 500 buah per bulan

Galeri

Open/Silent Portable Diesel Generator for Home Small Power Cummin s Genset 50kW 63KVA Generators Set Engine Electric

Deskripsi Produk

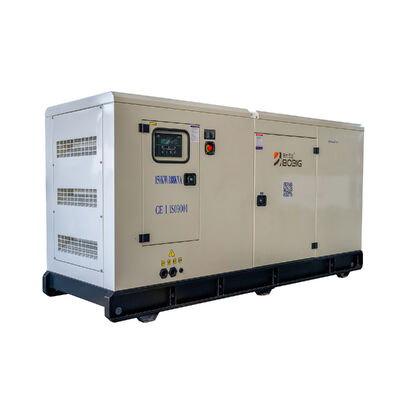

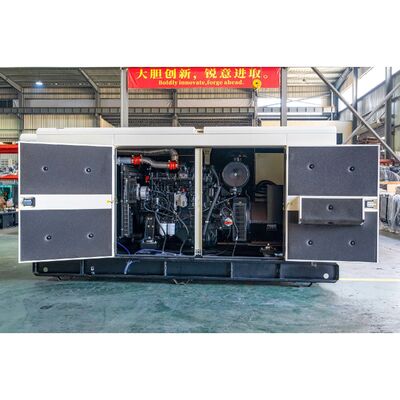

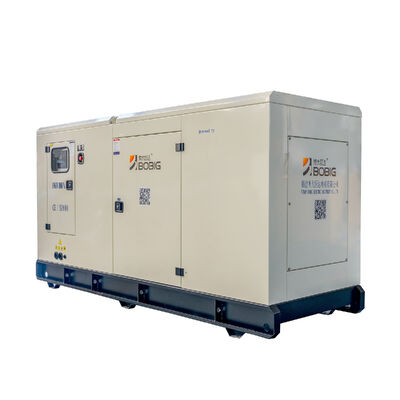

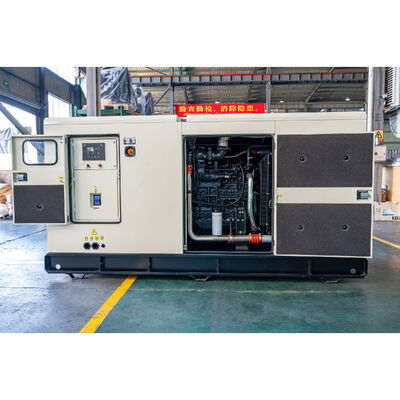

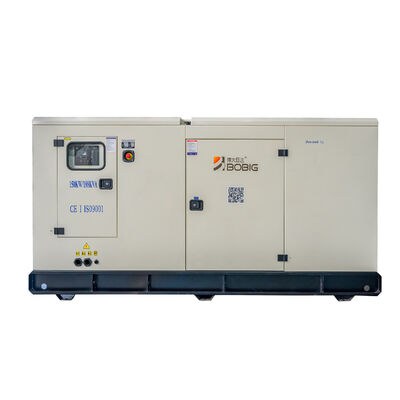

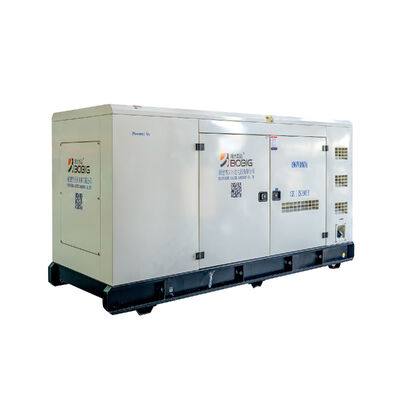

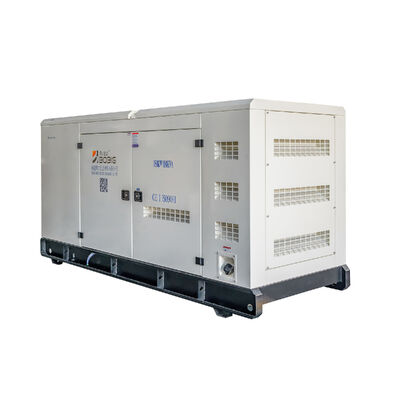

50kW 63KVA BOBIG CUMMIN S Diesel Generator

Model: 4BTA3.9-G11 - Reliable Power Solution

Our 50kW 63KVA BOBIG CUMMIN S diesel generator is designed to provide reliable power for industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.

Key Features

Power Performance

Rated Power: 50kW (63KVA) with stable and efficient prime power output for continuous operation under heavy loads.

Frequency: Standard 50Hz operation suitable for most electrical equipment.

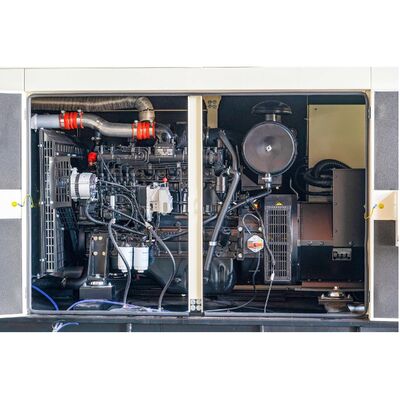

Engine Excellence

Engine Model: 4BTA3.9-G11 CUMMIN S engine with high torque, fuel efficiency, and low emissions.

Engine Speed: 1500 RPM for smooth, consistent power supply with minimal wear.

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	63	69
Power Rating (kW)	50	55
Frequency (Hz)	50
Engine Model	4BTA3.9-G11
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP: Prime power available for unlimited annual hours in variable load applications with 10% overload capability for 1 hour within 12-hour operation.

ESP: Standby power rating for emergency power supply during utility interruptions.

Dimensions and Weight

Model	BC69 (Open Type)	BC69S (Silent Type)
Length (mm)	1880	2450
Width (mm)	770	970
Height (mm)	1400	1250
Tank Capacity (L)	115	115

Engine Specifications

Engine Model & Manufacturer	4BTA3.9-G11 (Cummins)
Number of Cylinders	4
Cylinder Arrangement	In-line
Cycle	Four Stroke
Aspiration	Turbocharger & Aftercooler
Bore x Stroke	102 x 120 mm
Displacement	3.9 L
Compression Ratio	17.3:1
Prime Power/Speed	70 kW/1500 rpm
Standby Power/Speed	78 kW/1500 rpm
Fuel System	BYC PB/Electronic Governor
Cooling System	Force Water Cooling Cycle
Frequency Droop	≤ 5%
Total Lubrication System Capacity	10.9 L
Coolant Capacity (engine only)	8.3 L
Fuel Consumption @ 100% Load	208 g/kWh @1500 rpm
Starter Motor	DC 24V
Charge Alternator	DC 24V

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-224E
Alternator Rated Power	50kW/63kVA
Rated Voltage	230V/400V
Rated Frequency	50Hz
Connecting Type	3 Phase and 4 W
Number of Bearings	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Customization & OEM Services

We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.

Environmental Adaptability

Ambient Temperature: Operates effectively from +5°C to +40°C

Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)

Applications

Industrial Use: Backup power for factories to ensure continuous production during outages
Commercial Buildings: Power for offices, shopping malls, and hotels to maintain essential services
Residential Areas: Reliable power for communities with unstable power grids

Warranty & After-Sales Service

BOBIG products carry a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Our professional after-sales team provides 24/7 technical support, maintenance, and repair services.

Why Choose BOBIG

Brand Reputation: Cummins is a trusted brand with long history of quality products
Quality Assurance: Manufactured to international standards with rigorous quality inspections
Customization Options: Tailored solutions based on specific requirements

Certifications & Compliance

Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.

Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
