High Quality Doosan CE ISO Power Super Silent 160kW Diesel Generator Hot Sale Doosan Engine 200KVA with ATS Option Options

High Quality Doosan CE ISO Power Super Silent 160kW Diesel Generator Hot Sale Doosan Engine 200KVA with ATS Option Options
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kanopi: Disesuaikan
Jaminan: 12 Bulan/1000 Jam
Jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke
Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis keluaran: AC Tunggal/Tiga Fasa
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank Indursty dll
Nilai Tegangan: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga
Nama Produk: Genset Diesel, Genset 160kW, Didukung Oleh Genset Diesel Doosan, Siaga Menggunakan Generator Tenaga
Warna: Kebutuhan Pelanggan
Frekuensi: 50/60Hz
Nilai Daya: 160kw
Mesin: Doosan Asli
metode pendinginan: Sistem Pendingin Air
Menyoroti:

Doosan silent diesel generator 160kW

,

200KVA diesel generator with ATS

,

CE ISO certified silent generator
Informasi dasar
Tempat asal: Cina
Nama merek: Doosan
Sertifikasi: CE
Nomor model: P086TI
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Bungkus gelembung
Waktu pengiriman: 30 hari
Menyediakan kemampuan: 3000 set/bulan
Deskripsi Produk

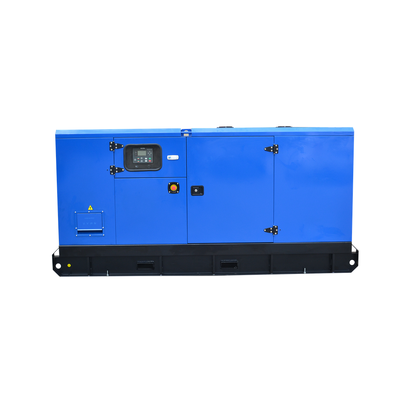

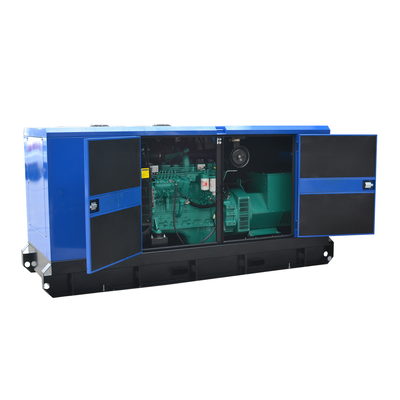

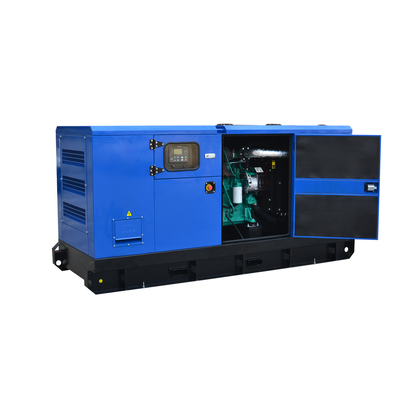

160kW 200KVA BOBIG Doosan Diesel Generator (Model: P086TI)
Reliable power solution designed for industrial, commercial, and residential applications with Doosan engine reliability and long-term durability.
Power Performance Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)200220
Power Rating (kW)160176
Frequency (Hz)50
Engine ModelP086TI
Engine Speed (RPM)1500
Phase3
Power Factor (PF)0.8
Control SystemDigital
Rated Voltage (V)400/230 (customizable)
Fuel Tank Operating Time≥ 8 hours @ 75% load
Key Features
Engine Excellence
  • Doosan P086TI diesel engine with advanced technology
  • High torque output with fuel efficiency
  • Low emissions and reliable performance
  • 1500 RPM operation for smooth power delivery
Alternator Specifications
  • BOBIG BW-274H brushless alternator
  • IP23 protection grade
  • H class insulation
  • ±1% voltage regulation
  • ≤2% total harmonic distortion
Environmental Specifications
Operating temperature range: +5°C to +40°C
Suitable for altitudes up to 1000m (custom solutions available for other conditions)
Dimensions & Weight
Model TypeOpen Type (BDO220)Silent Type (BDO220S)
Length (mm)23503200
Width (mm)8001200
Height (mm)17601660
Tank Capacity (L)368368
Engine Details
Engine Model & ManufacturerP086TI (DOOSAN)
Engine TypeDiesel, water cooled, Turbo charged & intercooled
Bore x Stroke111 × 139mm
Displacement8.07 liters
Cylinders and ArrangementCast iron, 6 cylinder, In-line Type
Battery Charging Alternator28.5V x 45A alternator
Starting Voltage24V
Fuel SystemMechanical Injection Pump
Lube Oil CapacityMax. 15.5 liters, Min. 12 liters
Dry Weight (engine only)790kg
Dimensions (LxWxH)1242 × 923 × 1095 mm
Applications
  • Industrial Use: Backup power for factories to ensure continuous production
  • Commercial Buildings: Power for offices, shopping malls, hotels, and essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Options
We support customization and OEM services with design drawings. All units come with standard DSE 6120 controller (engine, generator, and controller options available).
Quality Certifications
Compliant with ISO 8528-5:2018, GB/T2820.5-2009, and CE standards ensuring quality, safety, and reliability.
High Quality Doosan CE ISO Power Super Silent 160kW Diesel Generator Hot Sale Doosan Engine 200KVA with ATS Option Options 0 High Quality Doosan CE ISO Power Super Silent 160kW Diesel Generator Hot Sale Doosan Engine 200KVA with ATS Option Options 1
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Free replacement of easy-damageable spare parts during warranty period. Professional after-sales support available 24/7.
