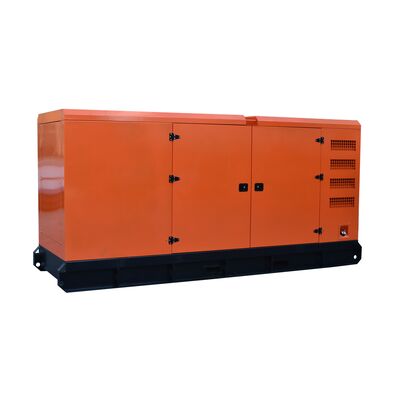

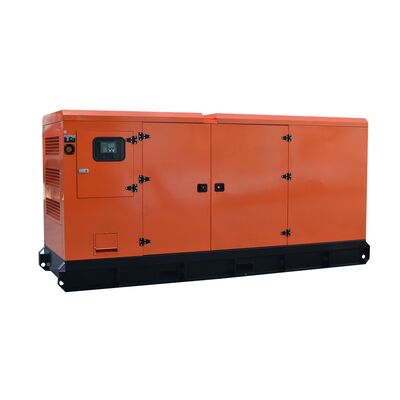

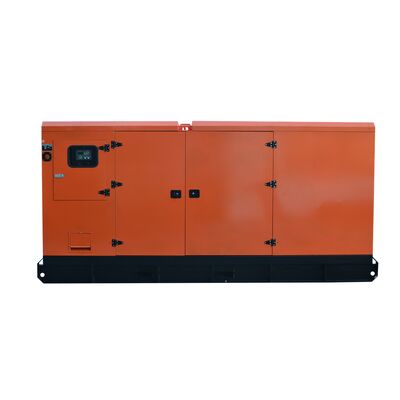

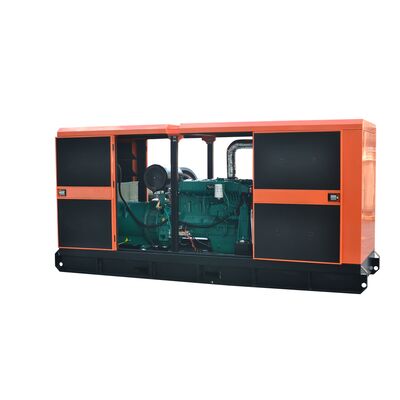

Our 300kW 375KVA BOBIG Doosan diesel generator (Model: DP126CB) is designed to provide reliable power for a wide range of applications. Backed by the renowned Doosan brand, it offers high-quality performance and long-term durability.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 375 | 413 |
| Power Rating (kW) | 300 | 330 |
| Frequency (Hz) | 50 | |
| Engine Model | DP126CB | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP: Prime power is available for unlimited annual hours in variable load applications according to GB/T2820-97. 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating applies for emergency power during utility interruptions. No overload, utility parallel, or negotiated outage operation capability available.
| Model | BDO413 (Open Type) | BDO413S (Silent Type) |
|---|---|---|
| Length (mm) | 3100 | 4050 |
| Width (mm) | 1050 | 1510 |
| Height (mm) | 2150 | 2050 |
| Tank Capacity (L) | 690 | 690 |
| Engine Model & Manufacturer | DP126CB (DOOSAN) |
| Engine Type | 4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged & intercooled |
| Bore x Stroke | 123 x 155 mm |
| Displacement | 11.051 liters |
| Compression Ratio | 16.5 : 1 |
| Rotation | Counter clockwise viewed from flywheel |
| Firing Order | 1-5-3-6-2-4 |
| Dry Weight | 1,058 kg |
| Dimension (LxWxH) | 1,411 x 1,133 x 1,323 mm |
| Fly Wheel Housing | SAE NO.1M |
| Fly Wheel | Clutch NO.14M |
| Number of Teeth on Flywheel | 106 |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314F |
| Alternator Rated Power | 300kW/375kVA |
| Rated Voltage (V) | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Our generator complies with multiple international and national standards:
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Also accept 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit.
Fuzhou port, Fujian province or as customer request.
Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance.
Yes, we can provide parts at any time, usually shipped within 3-5 days.
Yes, all specifications can be customized according to your needs.
We welcome distributors worldwide and can issue authority certificates and sign agreements.
