Super Silent 60kw diesel Generator Set for Home Use Portable Standby 75kva YANGDONG Engine diesel Generator Power Capacities

Super Silent 60kw diesel Generator Set for Home Use Portable Standby 75kva YANGDONG Engine diesel Generator Power Capacities
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kanopi: disesuaikan
Jaminan: 12 Bulan/1000 Jam
Jenis: Senyap (super Senyap) atau Terbuka, Senyap, Dll, In-line/6-Silinder/4-Langkah/4-Katup/19L, Kanopi Ke
Panel Kontrol: Layar Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis keluaran: AC Tunggal/Tiga Fasa
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank Indursty dll
Nilai Tegangan: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Atau Newtec, Engga
Nama Produk: Genset Diesel, Generator 75kva, Ditenagai Oleh Generator Diesel YANGDONG, Siaga Menggunakan Tenaga D
Warna: Kebutuhan Pelanggan
Frekuensi: 50/60Hz
Nilai Daya: 75KVA
Mesin: Yang Dong asli
metode pendinginan: Sistem Pendingin Air
Menyoroti:

60kw diesel generator for home

,

portable 75kva diesel generator

,

Yangdong standby diesel generator set
Informasi dasar
Tempat asal: Cina
Nama merek: YANGDONG
Sertifikasi: CE
Nomor model: Y4110ZLDA
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: kayu lapis
Waktu pengiriman: 30 hari
Menyediakan kemampuan: 500pcs per bulan
Deskripsi Produk

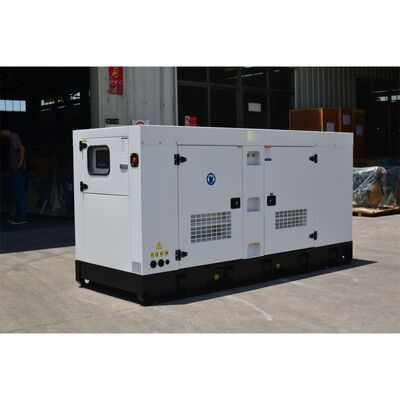

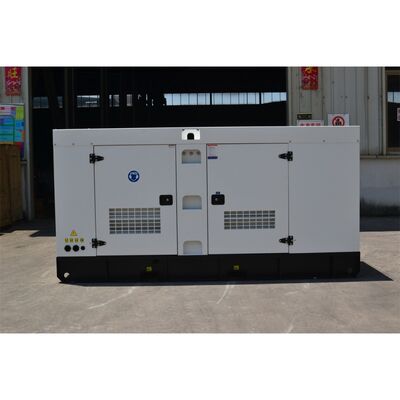

60kW 75KVA BOBIG YANGDONG Diesel Generator Set (Model: Y4110ZLDA)
Our 60kW 75KVA BOBIG YANGDONG diesel generator (Model: Y4110ZLDA) is designed to provide reliable power for a wide range of applications. Backed by the YANGDONG brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 60kW (75KVA) for various industrial, commercial, and residential applications
  • Frequency: Standard 50Hz operation suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: Y4110ZLDA YANGDONG engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Specifications
ParameterPrime PowerStandby Power
Rated Power (kVA)7583
Power Rating (kW)6066
Frequency (Hz)50
Engine ModelY4110ZLDA
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Engine Details
ParameterSpecification
Engine Model & ManufacturerY4110ZLDA (YANGDONG)
Number of Cylinders4
Injection TypeDirect
AspirationTurbocharged and Intercooled
ConfigurationVertical
Bore110 mm
Stroke118 mm
Compression Ratio18
Displacement4.49 L
Dry Engine Weight420 kg
Dimension (L×W×H)883 × 720 × 808 mm
Flywheel Shell InterfaceSAE3
Alternator Specifications
ParameterSpecification
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-224F
Alternator Rated Power60kW/75kVA
Rated Voltage230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 Wire
Number of Bearings1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Dimensions and Weight
Model TypeBY83 (Open)BY83S (Silent)
Length (mm)18502600
Width (mm)730930
Height (mm)13501220
Tank Capacity (L)138138
Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Quality Standards
Our generator complies with multiple international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
Warranty and Service
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of easy-damageable spare parts caused by production or material quality issues. Our professional after-sales service team is available 24/7 for technical support, maintenance, and repairs.
Why Choose Us
  • Brand Reputation: Trusted brand with long history of high-quality products
  • Quality Assurance: Strict manufacturing according to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit receipt.
Which port do you use for export?
Fuzhou port, Fujian province or as per customer request.
Do you provide spare parts for maintenance?
Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you offer parts when needed?
Yes, we can supply parts at any time, typically shipped within 3-5 days.
Can specifications be customized?
Yes, voltage, frequency, tank capacity, phase, and color can be customized to your needs.
What is your distribution policy?
We welcome distributors worldwide and can provide authority certificates and agreements.
Packaging & Shipping
Packaged in plywood cases. Delivery within 10-15 working days after receiving customer deposit.
