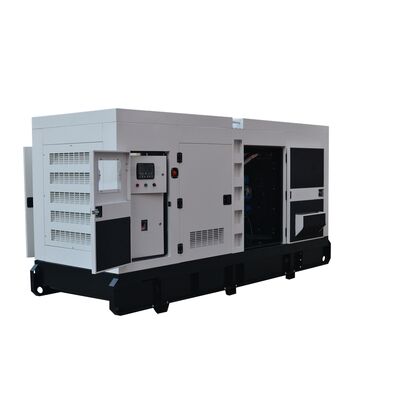

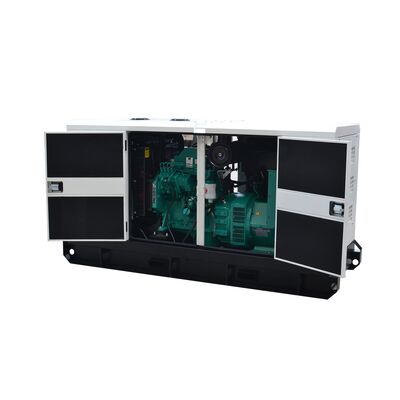

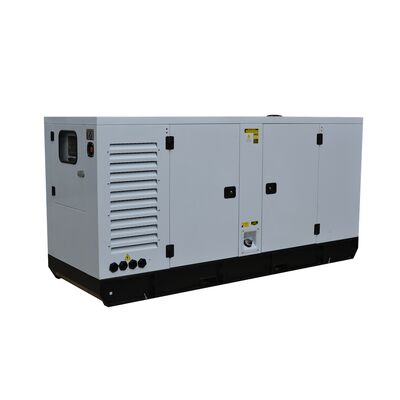

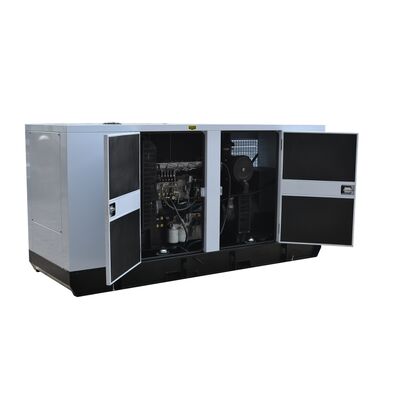

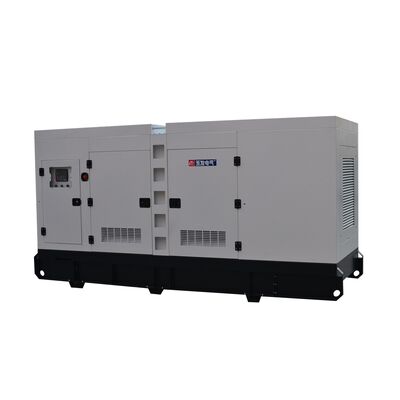

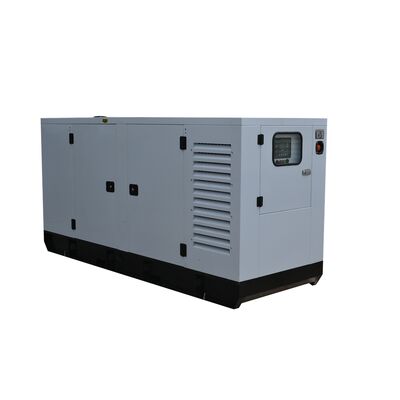

Factory Direct-Sale ISUZU Alternator Power Plant Water Cooled Portable Silent Diesel Generator Set 23KVA Power Genset 18kW

Factory Direct-Sale ISUZU Alternator Power Plant Water Cooled Portable Silent  Diesel Generator Set 23KVA Power Genset 18kW
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kanopi: Disesuaikan
Jaminan: 12 Bulan/1000 Jam
Jenis: Diam (super Diam) atau Terbuka, Diam, dll, In-line/6-Cylinder/4-Stroke/4-Valve/19L, Kanopi Kedap Sua
Panel kontrol: Tampilan Digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Jenis Keluaran: AC Tunggal/Tiga Fase
Pengendali: Deepsea/Smartgen/dll
Aplikasi: Bank industri dll
Nilai Tegangan: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternator: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford atau Newtec, Engga
Nama Produk: Genset Diesel, Genset 23KVA, Ditenagai Genset Diesel ISUZU, Siaga Gunakan Genset Tenaga Diesel 18kW
Warna: Persyaratan pelanggan
Frekuensi: 50/60Hz
Nilai daya: 23KVA
Mesin: Isuzu asli
Metode Pendinginan: Sistem Pendingin Air
Menyoroti:

ISUZU silent diesel generator set

,

water cooled portable generator 23KVA

,

ISUZU diesel genset with warranty

Informasi dasar
Tempat asal: Cina
Nama merek: ISUZU
Sertifikasi: CE
Nomor model: JE493DB-04
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kayu lapis
Waktu pengiriman: 30 HARI
Menyediakan kemampuan: 500 pcs per bulan
Deskripsi Produk
Factory Direct-Sale ISUZU Alternator Power Plant Water Cooled Portable Silent Diesel Generator Set 23KVA Power Genset 18kW
Product Overview

Our 18kW 23KVA BOBIG ISUZU diesel generator (Model: JE493DB-04) is designed to provide reliable power for a wide range of applications. Backed by the renowned ISUZU brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: With a rated power of 18kW (23KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.

Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.

Engine Excellence

Engine Model: Powered by the JE493DB-04 ISUZU engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.

Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.

Technical Specifications
Power Ratings
General Information Prime Power Standby Power
Rated Power (kVA) 23 25
Power Rating (kW) 18 20
Frequency (Hz) 50
Engine Model JE493DB-04
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BJL25 (Open Type) BJL25S (Silent Type)
Length (L) mm 1400 2000
Width (W) mm 610 850
Height (H) mm 1150 1050
Tank Capacity (L) 41 41
Engine Specifications
Engine Model & Manufacturer JE493DB-04 (ISUZU)
Engine Type Water cooling, in line, four-stroke, wet liner and direct injection machinery or electronic
Number of Cylinders 4
Bore×Stroke(mm) 93×102
Aspiration Naturally
Displacement 2.771
Compression Ratio 18.2:1
Firing Order 1-3-4-2
Rated Output (Kw) 21
Maximum Power (Kw) 24
Rated Speed (r/min) 1500
Idling Speed (r/min) 850
Oil Consumption Rate (g/kW.h) ≤230
Overall Dimension (mm) 856×601×810
Net Mass (kg) 230
Steady Speed Adjusting Ratio machinery≤5% electronic≤1%
Lubricating Method Pressure lubrication and splash
Starting Method Electric motor start
Crankshaft Rotating Direction Clockwise (from the front view of diesel engine)
Oil Sump Capacity (L) 5.6
Oil ≥API CF-4
Oil Pressure (MPa) 0.1-0.50
Noise (dB(A)) ≤93dB(A)
FSN (Rated Output) <3.0
Exhaust Temperature (℃) <500
Oil Temperature (℃) <110
Cooling Water Temperature (℃) 85±10
Generator 14V/50A
Starting Motor 12V/2.8kW
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184E
Alternator Rated Power 18kw/23kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Environmental Adaptability

Ambient Temperature: It can operate effectively in an ambient temperature range of +5°C to +40°C.

Altitude: The generator is suitable for use at altitudes of up to 1000m. If your environmental conditions are different, our sales team is ready to assist you with customized solutions.

Applications
  • Industrial Use: It can be used as a backup power source for factories, ensuring continuous production during power outages.
  • Commercial Buildings: Office buildings, shopping malls, and hotels can rely on it to maintain essential services like lighting, elevators, and security systems.
  • Residential Areas: Provide reliable power to residential communities, especially in areas with unstable power grids.
Warranty and Service

BOBIG products have guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, we will provide the free easy-damageable spare parts, caused by our quality of production or raw material. After expiration, we provide cost spare parts maintenance.

Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services to ensure your peace of mind.

Why Choose Us
  • Brand Reputation: ISUZU is a well-known and trusted brand in the diesel generator industry, with a long history of producing high-quality products.
  • Quality Assurance: Our products are manufactured in strict accordance with international standards, and each generator undergoes rigorous quality inspections before leaving the factory.
  • Customization Options: We understand that different customers have different needs. Our team can provide customized solutions based on your specific requirements.
Frequently Asked Questions
What is your MOQ, payment method, delivery time?

Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C, trade assurance, PayPal, Western Union. Delivery period normally will be 10~15 working days after receiving customers' deposit.

Which port do you often use when export?

Fuzhou port, Fujian province or as customer request.

Is there any spare parts you can provide along with generators to make the maintenance convenient?

We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.

Can you offer parts to us if we need?

Yes, we can offer parts to you at any time, not limited in warranty time. Usually the parts can be sent out during 3-5 days.

For voltage, frequency, tank capacity, phase and color, can you made accord with our requests?

Yes, they can be made accord with your need.

If I want to be your products distributor in our country, what is your distribution policy?

Welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.

Company Information

We are an electrical machinery manufacturer collecting the technological research, production and sale together. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.

Our main products include gasoline generators, diesel generators 5-2000kva, gas generator, pump etc. Due to our advanced technique and devices, rich experience, reliable quality, considerate service and good team work, we have won a great reputation in the world market.

Adhering to the idea of "Quality, Creation, Service and Development", we keep the aim of updating technology, improving quality and providing better service all the time. We also have kinds of advanced equipment to test our products, such as CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment. We always control product quality strictly and our company has obtained ISO9000 Quality System Certification.
