YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm

1
MOQ
USD 300-860
harga
YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Menyoroti:

Yanmar 20kw diesel generator

,

Yanmar diesel generator for farm

,

Yanmar 3TNM72-GGE home generator
Informasi dasar
Tempat asal: Cina
Nama merek: YANMAR
Nomor model: YANMAR 3TNM72-GGE
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: 175*85*103cm
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T, D/P
Menyediakan kemampuan: 500 pcs per bulan
Deskripsi Produk
YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm
Product Overview

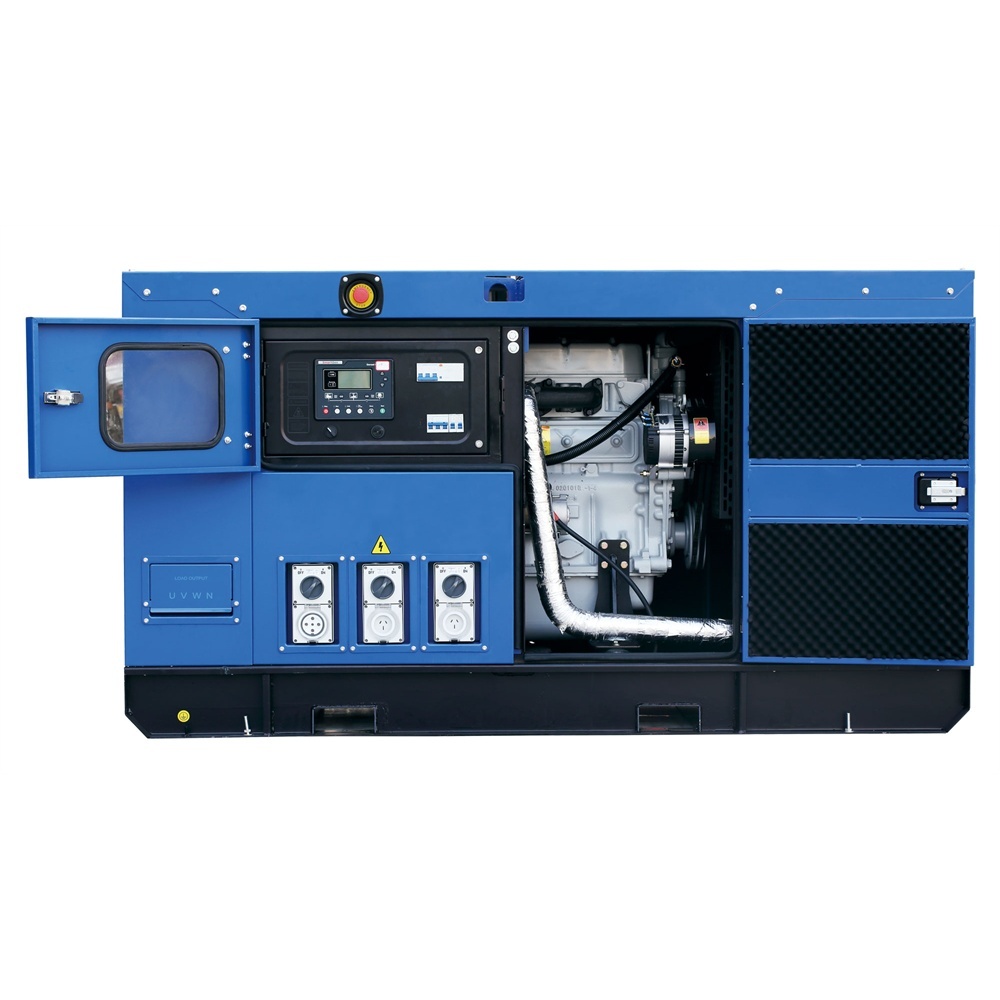

Our BOBIG 3TNM72-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned BOBIG engine, this 6kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm 0YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm 1
General Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)88
Power Rating (kW)67
Frequency (Hz)50
Engine Model3TNM72-GGE
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
ModelBYN8 (Open Type)BYN8S (Silent Type)
Length (L) mm14001750
Width (W) mm610850
Height (H) mm11301030
Tank Capacity (L)1414
Engine Specifications
Engine Model & Manufacturer3TNM72-GGE (YANMAR)
Engine Type4 cycle, Inline, Water-cooled Diesel
No. of Cylinders - Bore × Stroke (mm)3 - φ72 × 74
Combustion SystemIndirect Injection
Compression Ratio23.5
Displacement (liter)0.904
Rated Output kW(PS)7.3/8.6 (9.9/11.7)
Continuous Rating kW(PS)6.6/7.8 (9.0/10.6)
Specific Fuel Consumption g/kW-h(g/PS-h)max.265 (195) (at rated output)
Fuel Injection Timing (deg)17.0 (+1/-1) (FID b.T.D.C)
Engine Dry Weight (kg)approx. 110
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-164A
Alternator Rated Power6kw/8kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 Wire
Protection GradeIP23
Insulation ClassH class
Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & can speed sensing)
YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm 2
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
EngineAlternatorFuel SystemGenerating Set
Water Jacket PreheaterPMG excitation12 / 24 hour base tankDeepsea, ComAp, Smartgen etc. controller
Oil PreheaterSpace heaterBunded fuel tankTrailer
Oil manual pumpWinding temperature measuringExternal fuel tankTools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm 3YANMAR 3TNM72-GGE 20kw Diesel Generator for Home Hotel Farm 4
